Visual Communication

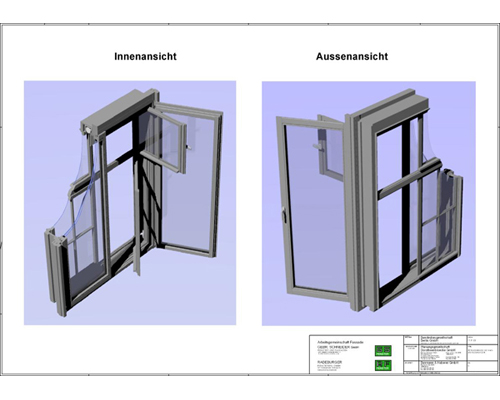

Visual communication is always an important part of design activity and this short piece of work highlighted this to me all the more. The images below were from a package of information put together to represent a technical argument in a German legal case. The challenge was to represent the technical parameters of the precision manufacturing of the window systems shown and their incompatibility with the rough stonework they were to be fitted to.
